4750 Test parts

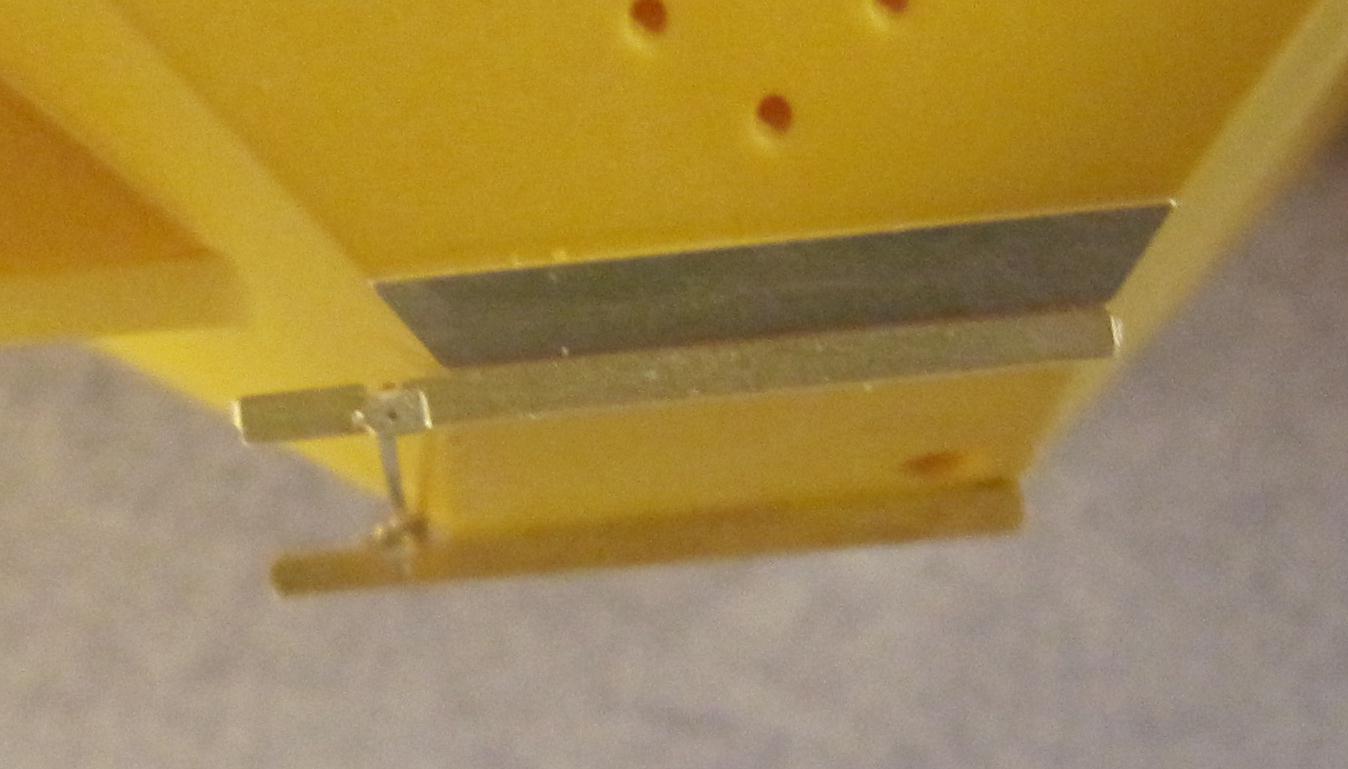

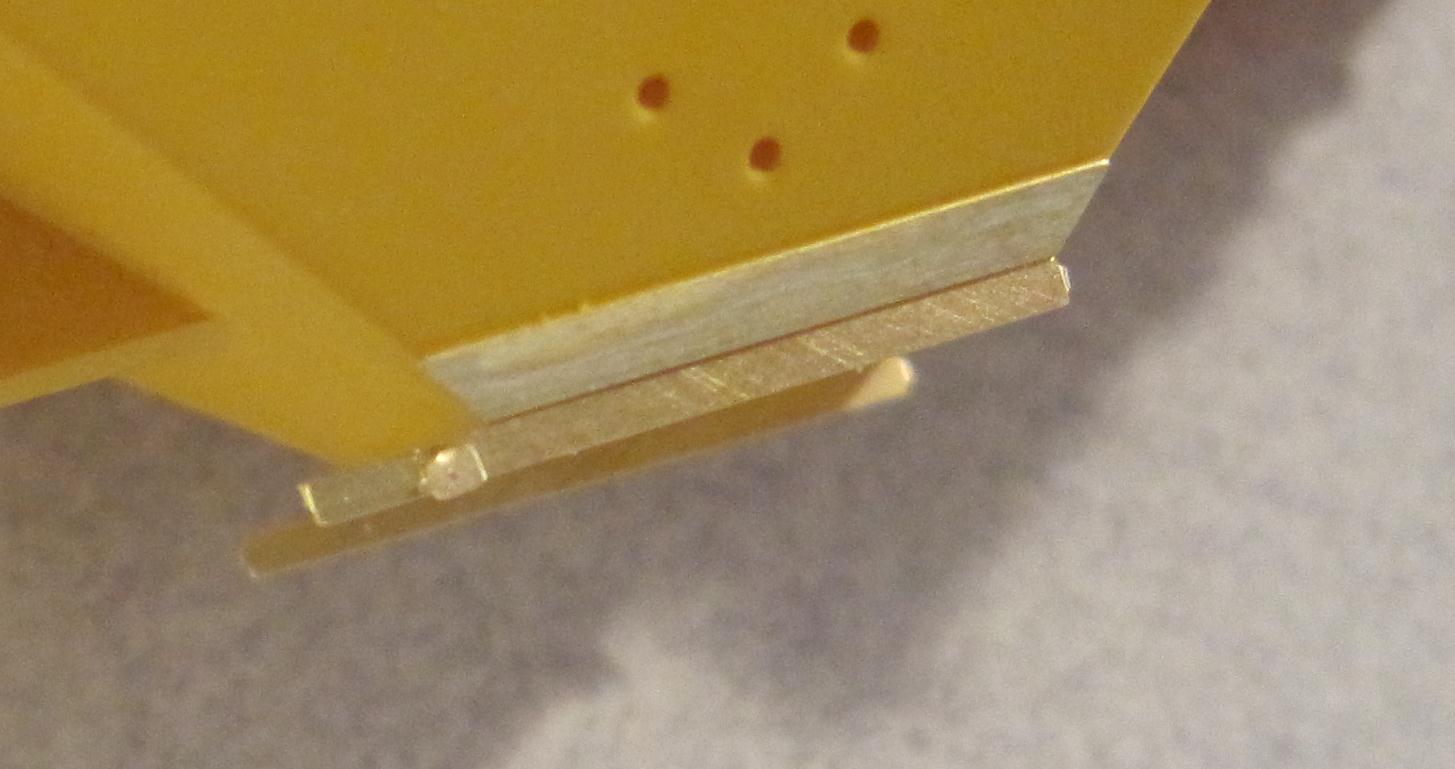

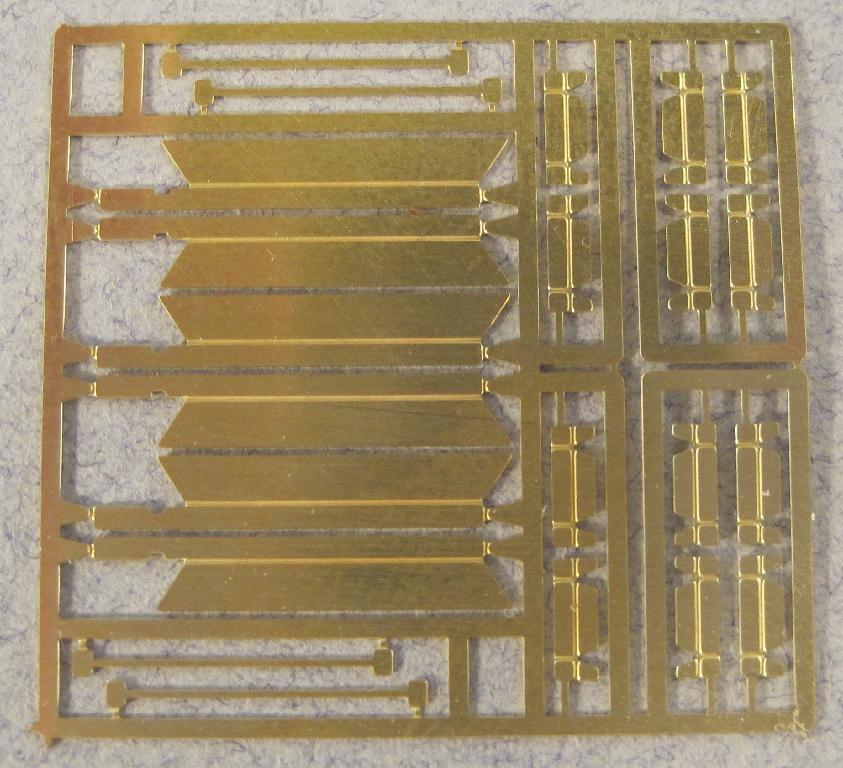

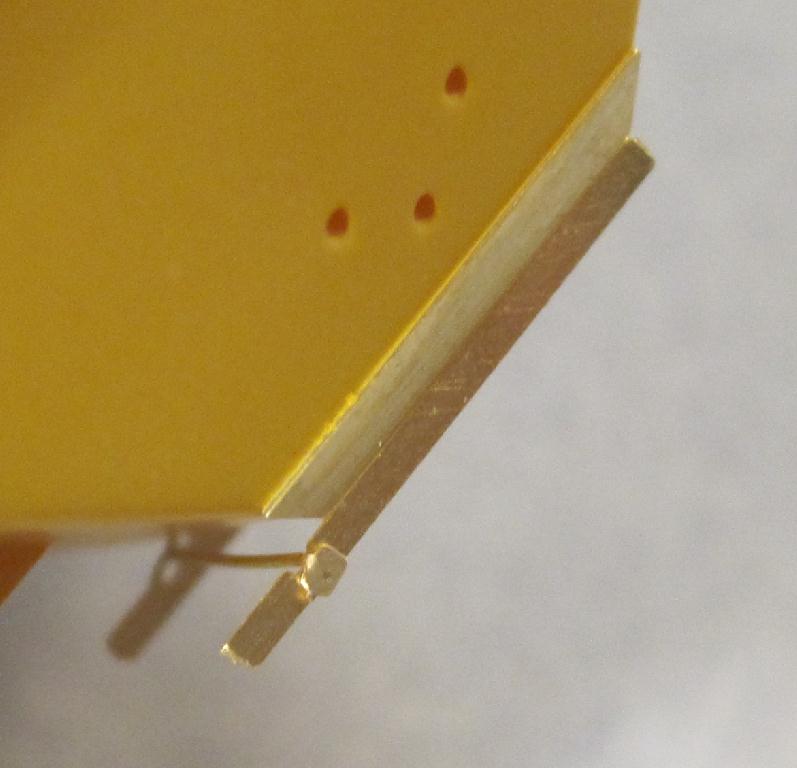

These photos show some parts I have developed to use to represent the outlet gate rails on a PS2 4750 covered hopper. As usual there will need to be some tweaks. That cross bar is too short and the side angles are off very slightly. These are very generic and I don't plan to add a whole lot more detail to them. They do give a good illusion of the prototype. Unfortunately I have misplace the prototype information I used to develop them. (lame, I know) And those little parts on the right side of the fret, I hate it when I draw something and can't remember what the hell they are. Anyway, please let me know what you think, good or bad.

Thank you!
