Diesel Details



Need to jump to something spacific? Here are some quick links

  • Radiator Fan Hathces
  • 48 Inch Fans and Fan Grilles
  • Fan Mounting Brackets
  • EMD Steps
  • GP30 Details
  • Winterization Hatch Screens
  • EMD GP7, GP9, GP18, GP20 Details
  • EMD SD7 and SD9 Details
  • EMD SD24 Details
  • SD18 conversion kits
  • EMD E8/9 A and B Details
  • EMD F7 Grilles ???


    Want to add some detail to your Proto2000 SD45? How about adding some stainless steel intake grilles.



    Qty Part# Description Price
    #11805 SD45 Intake Grille set w/ early diamond mesh filter screens $ 8.00
    #11806 SD45 Intake Grille set w/ late rectangular mesh filter screens $ 8.00

    Go To Your Shopping Basket

    SP SD45 Tunnel motor 'elephant ears'. These brass shrouds are meant to represent the tunnel motor shrouds the SP used on there SD45s. For more prototype information on the shrouds, I will point you to the experts pages. Please note: these will not fit on the Athearn/RPP SD45 shells. The shape of their DB is different than the Kato and Proto2000.



    Qty Part# Description Instructions Price
    #14851 SP SD45 Tunnel Motor Shrouds - EMD built round top ----- $ 10.50
    #14852 SP SD45 Tunnel Motor Shrouds - SP built angled top preview $10.50


    Santa Fe rebuilt some of their GP30s with filter shrouds and smoke deflectors. Phase I and Phase II cab shrouds are available in brass. Stainless steel smoke deflectors are included with the the shrouds kits or available seperately. These smoke deflectors can also be used on other models, such as the FP45s.

    Here are a few photos of a GP30 model built by Jim Drennan using our shrouds and smoke deflectors.



    Qty Part# Description Price
    #14801 SF GP30u Filter Shrouds w/Smoke Deflectors Ph I cab - P2K shell $6.25
    #14802 SF GP30u Filter Shrouds w/Smoke Deflectors Ph II cab - P2K shell $6.25
    #14803 SF GP30u Smoke Deflectors $2.75

    Go To Your Shopping Basket

    CNW and DT&I Gong bell Nose plates. Adding those gong bells to the front of the CNW or DT&I diesels has always been one of those tasks that always gave me trouble. As the number of models needing these bells grew, a easier method was researched and found. These new plates just fold up with sides, bottom and a top cap and slide into an opening you make in the nose with the aid of a included template. There are three nose plates per package. Gong bells are not included but any of the commercially available bells will fit.


    Qty Part# Description Price
    #18421 CNW / DT&I Gong bell nose inserts (3) w/ template $3.50

    Go To Your Shopping Basket

    If you are a Rock Island fan, you may be interested in our stainless steel FARR style grillesto fit the Stewart U-25-B model.
    This photo by George Elwood from his Fallen Flags web site has a very good view of one of these grilleson a Rock Island U25B.



    Qty Part# Description Price
    #181 FARR Grill-Stewart U-25-B Rock Island prototype $3.50


    Rotary beacon and antenna mounting brackets made of stainless steel are easily bent to shape. No styrene building for these details.



    Qty Part# Description Price
    #182 Rotary Beacon Light Bracket - Cab Corner - package of 3 $2.25
    #183 Rotary Beacon Light Bracket - Cab Center - Low - package of 4 $2.25
    #184 Antenna Bracket - Small Cab Center- package of 3 $2.25
    #462 Rotary Beacon Light Bracket without hole - Cab Corner - package of 3 $2.25

    Go To Your Shopping Basket

    Nathan M5 Horn Brackets


    These phosphorus bronze horn brackets are designed to used with the Detail Associates horn kits. Instead of using the fragile plastic horn bracket in their kit, these brackets can be used to build to build the horn and give the assembly some strength.



    Qty Part# Description Price
    #11832 Nathan M5 Horn Bracket - Detail Assoc. Horn kit - Phos bronze $ 2.00

    Go To Your Shopping Basket

    Door Latch "knuckle busters" And Door Hinges


    These brass door latches can be used for scratch building your own doors. The latches are a two piece latch and once the pieces are put together, they will give some depth to the handle. Door hinges are also available.




    Qty Part# Description Price
    #14660 EMD Hood Door Latches - 48 - Brass $ 3.50

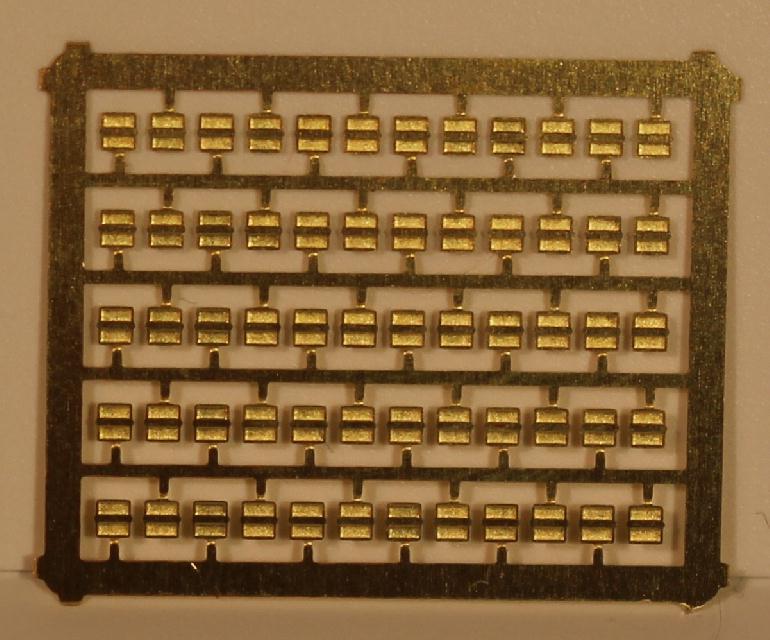

    #14661 EMD Hood Door Hinges - 60 - Brass $ 3.00

    Go To Your Shopping Basket

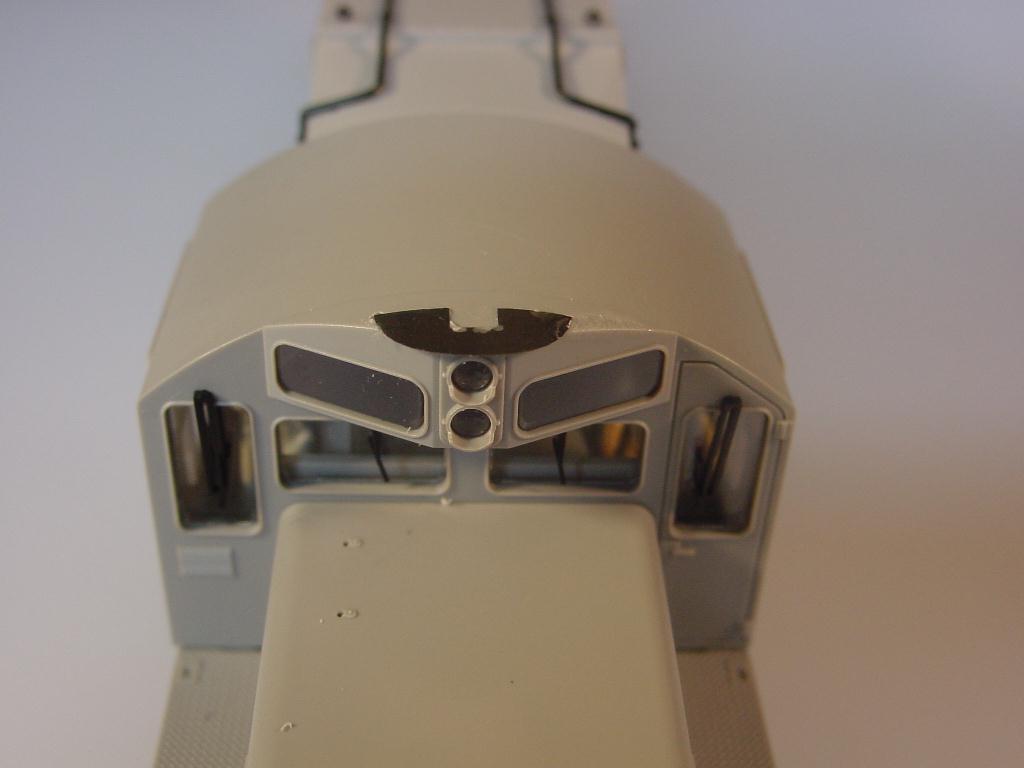

    Some of the early EMD GP and SD units with rounded cab roofs had Antenna Ground Planes mounted over the number board housings. The Santa Fe and Southern Pacific are two roads that come to mind when one thinks of who used them. We have two variations of these available made from stainless steel. One is a solid, rounded front and straight back edge. The other one has a rounded front and square cutout where a antenna and it's base would be mounted. Each package contains four of the same ground plane in it. A drilling template is also include to aid the mounting process.



    Qty Part# Description Price
    #11841 Antenna Ground Plane Plate (4) - with Square Antenna Cutout - GP/SD 7,9,18,20,24 - stainless steel $3.25

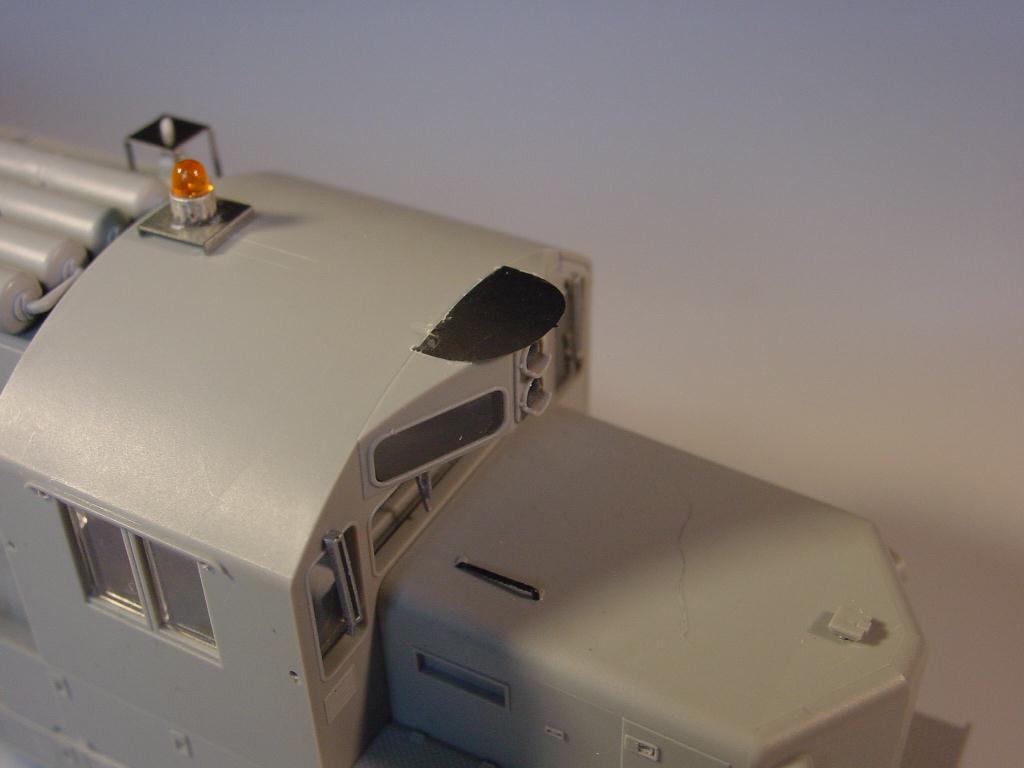

    #11842 Antenna Ground Plane Plate (4) - Solid plate - GP/SD 7,9,18,20,24 - stainless steel $3.25

    Go To Your Shopping Basket

    Etched liftrings? Yup, four different sizes are available. These are not just some flat rings you are supposed to imagine as being round rings. While these rings are not the 'round' rings of the prototype, once installed and painted they will appear round. And no where not talking about the eyelet/hole being round. We are talking about the round rod that forms the ring. Our rings have halves that are folded together to give them thickness. But each half has two levels of etch. So, once folded together, you have three levels of etch. And once painted, the paint fills in the edges leaving a round liftring. Four different sizes are available to cover most sizes used on EMD diesels. Each package contains 48 lift rings.

    Here are a few applications for the different sizes of rings on EMD units.

    3 3/8 X 1 3/4 - DB hatches and side of long hood end

    2 3/4 X 1 1/2 - Radiator hatch

    2 3/8 X 1 3/8 - Inertial filter hatch and exhaust hatch

    Model ship builders have also found these useful for different rigging eye bolts



    Qty Part# Description Price
    #14650 HO scale Liftrings - 4 O.O. X 2 1/2 I.D - 48 per. pkg. - stainless steel $4.00
    #14651 HO scale Liftrings - 3 3/8 O.O. X 1 3/4 I.D - 48 per. pkg. - stainless steel $4.00
    #14652 HO scale Liftrings - 2 3/4 O.O. X 1 1/2 I.D - 48 per. pkg. - stainless steel $3.75
    #14653 HO scale Liftrings - 2 3/8 O.O. X 1 3/8 I.D - 48 per. pkg. - stainless steel $3.75

    Go To Your Shopping Basket


    First generation EMD SD units had lift lugs on the sides of the long hood infront of or to the rear of the intake screens. Some of these were just regular lift rings, while some of these units, mostly later units, had a larger plate with a hole in them attached to the side of the units. We have these lift plates available made out of phosphorus bronze. There are six per package and two of them have a flag holder bracket etched on them.


    Qty Part# Description Price
    #14658 SD7/9/18/24/26 Side Lift Lug Plates - 6 per. pkg. - phosphorus bronze $2.25

    Go To Your Shopping Basket

    And for those who like to add lift rings to their models, we have some very small lift lugs do add to your Paper AirFilter Boxes found on GP and SD 38s / 38-2s. These stainless steel lift lugs have a hole in the center of them and a taper on the outer edge, just like the prototypes. What, you haven't seen these before? Just look at the upper corners of the paper air filter box next time you look at one the these engines.


    Qty Part# Description Price
    #14659 Air Filter Lift Lugs - GP/SD 38/38-2 - 24 per. pkg. - stainless steel $2.25

    Go To Your Shopping Basket


    Fan Hatches



    Fan Hatches are here! Our hatches feature etched in bolt heads, holes for lift rings, and holes for fans (enabling you to add a new fan). They fit any shell available and accept any fan on the market.



    Qty Part# Description Price
    #180 SD45 Fan Hatch - Stainless Steel $4.00

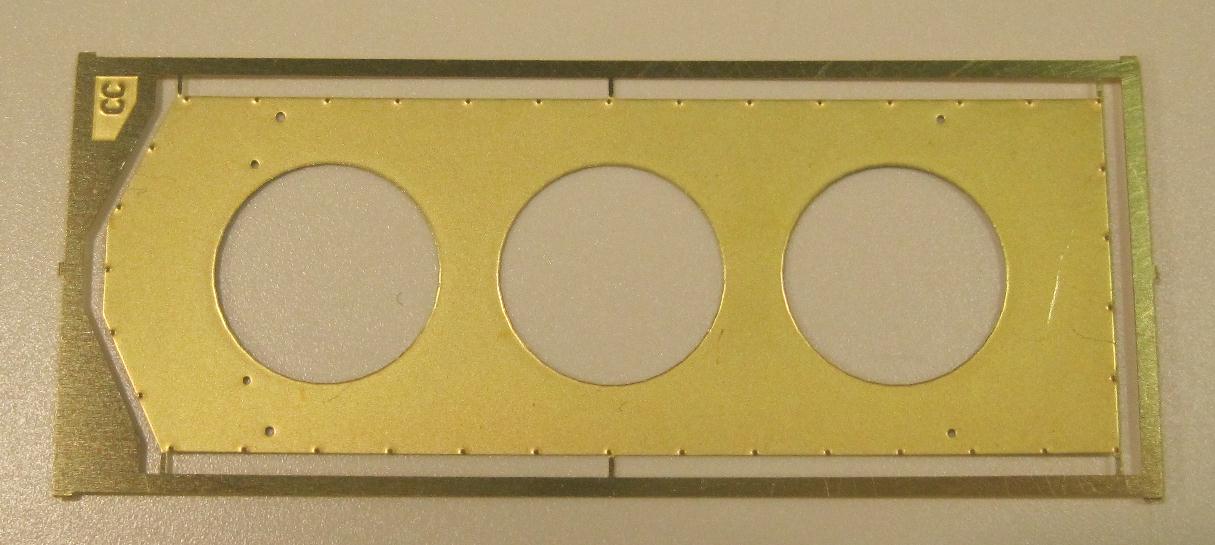

    #11802 SD45 Fan Hatch - Cannon Fans - Brass $4.00
    #185 SD40-2 Fan Hatch - Stainless Steel $4.50
    #11852 SD40-2 Fan Hatch - Cannon Fans - Brass $4.50
    #186 GP35 Fan Hatch - Stainless Steel $3.50
    #11862 GP35 Fan Hatch - Cannon Fans - Brass $3.50
    #187 GP38 Fan Hatch - Stainless Steel $4.50
    #11872 GP38 Fan Hatch - Cannon Fans - Brass $4.50
    #188 GP38-2 Fan Hatch - Stainless Steel $3.00
    #11882 GP38-2 Fan Hatch - Cannon Fans - Brass $3.00

    Go To Your Shopping Basket

    Fans and Grilles


    Stainless Steel Fan grilles will inhance the detail on top of your diesel locomotive.

    Qty Part# Description Price
    #467 48" Flat Top Fan grilles(2) $3.00
    #468 48" Dynamic Brake grilles with Lift Rings (2) $3.50
    #469 48" Spiral fan grilles - 10 radial arms (2) $3.00
    #470 48" Spiral Fan grilles - 24 radial arms(2) $3.00
    #471 48" Fans - 8 blade style (4) $3.25
    #472 48" Fans - 9 blade style (4) $3.25
    #473 48" Fans - 10 blade style (4) $3.25
    #474 36" GP30 Flat Top Fan grilles with fans(2) These are designed to fit the Proto2000 GP30 shell $3.50
    #475 36" GP35 Flat Top Fan grilles with fans(2) These are designed to fit the Atlas GP35 shell $3.50

    Go To Your Shopping Basket

    Fan Mounting Brackets


    Stainless Steel Fan mounting brackets to hold our 48 inch fans in place. These mountin brackets are designed to hold any one of our 48 inch fans #471, #472 or #473. Four of them are configured to match the hole locations of our Fan Hatch Plates #180, #185, #187 and #188. The fifth kit contains two individual brackets for those specialized projects. Each kit contains three different sized brackets to hold the fans at different depths in your fan housings. These brackets are intended for use on diesels with open fans needing new fans but are not candidates for Cannon fan housings. Here is a photo of a preproduction set of brackets to show you what an assembled kit will look like. There are also a few photos of one of these brackets installed in an Athearn FP45 model in the #11807 link below.



    Qty Part# Description Price
    #11807 SD45 Fan mounting bracket set $3.75

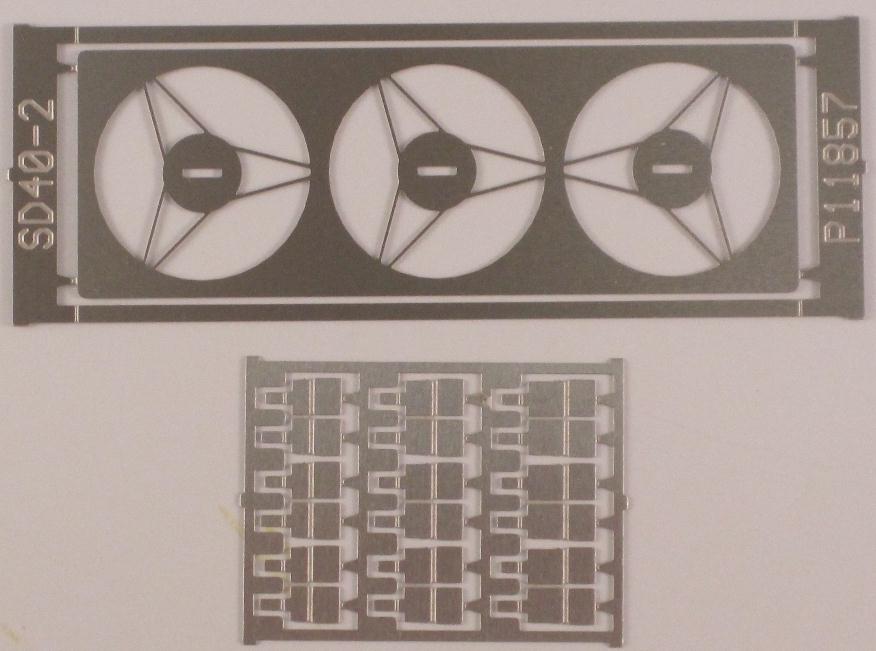

    #11857 SD40-2 Fan mounting bracket set $3.75

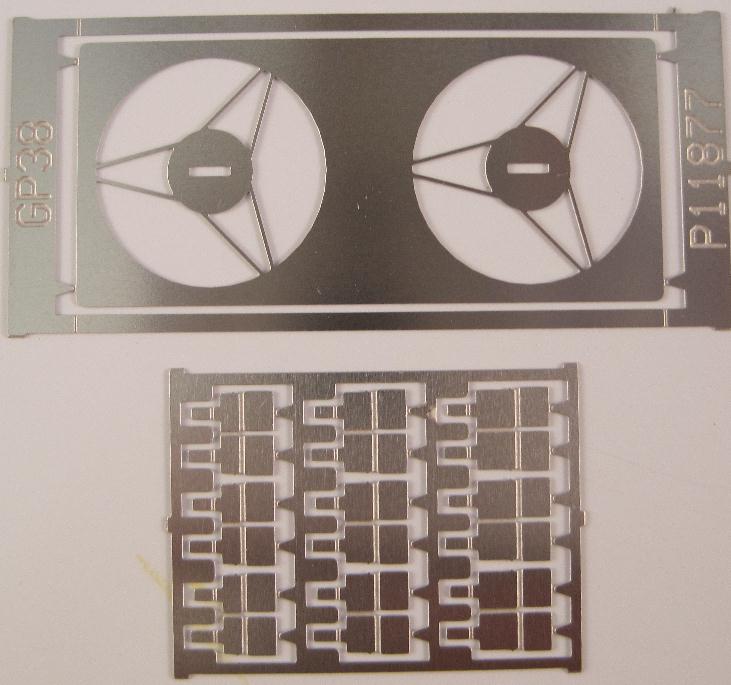

    #11877 GP38 Fan mounting bracket set $3.75
    #11887 GP38-2 Fan mounting bracket set $3.25

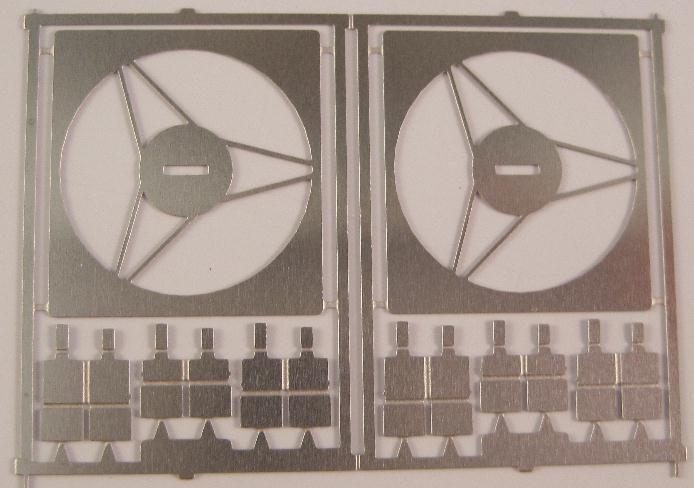

    #14717 Fan mounting bracket - 2 $3.50

    Go To Your Shopping Basket

    OR, if you are modeling a diesel that has been rebuilt with a fan removed and plated over, maybe these round plates will work.



    Qty Part# Description Price
    #11853 48" Fan Blanks Bolt on style - brass(2) with NBWs $4.00
    #11854 48" Fan Blanks Welded on style - Brass (2) $3.75

    Go To Your Shopping Basket

    Some GP30 details

    For the Proto2000 GP30, a few dynamic brake details that can be added to your models.

    Qty Part# Description Instructions Price
    #14806 GP30 Dynamic Brake Extended Range Cable Cover Boxes (2) ---- $3.50

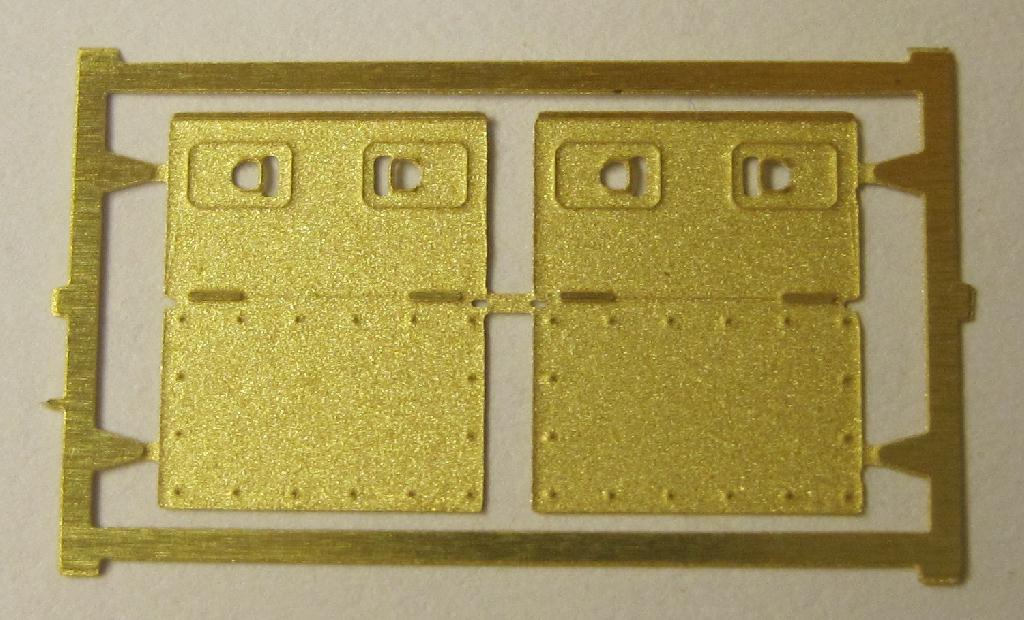

    #14809 GP30 Dynamic Brake Extended Range Inspection door - Early - Low Hinges (2) ---- $2.50
    #14810 GP30 Dynamic Brake Extended Range Inspection door - Late - High Hinges (2) ---- $2.50
    #14807 GP30 Dynamic Brake Fan Hatches (2) Brass ---- $ 4.25
    #14808 GP30 Non-Dynamic Brake Hatch and Blank Plate - Brass read $4.25

    Go To Your Shopping Basket

    Those Southern highhood GP30 nose bell brackets can be added to your models using these brass brackets. Each kit includes 2 brackets, a drill template, NBWs and brass wire for conduit. A bell of your choice will need to be added



    Qty Part# Description Price
    #14805 GP30 Highhood Bell Brackets (2) w/template - brass $ 3.00

    Go To Your Shopping Basket

    Coupler knuckle baskets have be found a several diesels over the years. And they are not all the same. We came up with a few variations of baskets. These baskets all feature wire mesh sides and optional lids. Each package contains two of the same size basket. Here are a couple photos with some baskets bent and formed to shape.


    one two



    Qty Part# Description Price
    #11893 Coupler Knuckle Baskets w/lids (2) - 20" X 20" X 14" - round hole sides $4.00
    #11894 Coupler Knuckle Baskets w/lids (2) - 20" X 20" X 14" - round hole(1) and mesh(1) sides $4.00
    #11895 Coupler Knuckle Baskets - open (2) - 24" X 14" X 14" - diamond mesh Disc.
    #11896 Coupler Knuckle Baskets - open (2) - 24" X 18" X 14" - diamond mesh $3.25
    #11897 Coupler Knuckle Baskets - open (2) - 24" X 24" X 14" - diamond mesh $3.50

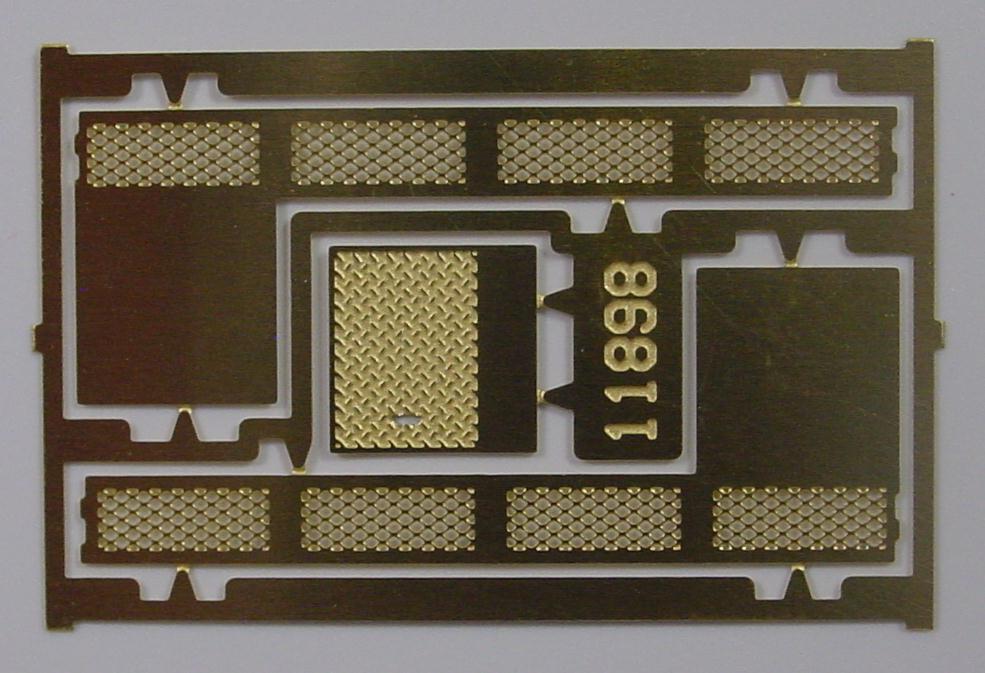

    #11898 Coupler Knuckle Baskets - open (2) - 24" X 24" X 10" - diamond mesh $3.50

    Go To Your Shopping Basket

    Winterization Hatch Screens

    Winterization hatch screens are available to fit some of the winterization hatches found on models on the marcket. These screens represent the diamond mess screens found on the prototypes. Here are the ones available so far. More should be following soon.



    Qty Part# Description Price
    #476 Winterization Hatch Screens - Proto2000 GP7/9 & SD7/9 - pkg of 4 $3.25
    #477 Winterization Hatch Screens - Proto2000 SD60 /SD60M - pkg of 2 $4.00
    #14771 Winterization Hatch Screens w/ lift lugs - Proto2000 SD45 - pkg of 2 $4.00
    #14772 Winterization Hatch Screens - Atlas SD24 - pkg of 2 $3.25
    #14773 Winterization Hatch Screens w/ Crossover Platforms - Atlas SD24 - pkg of 2sets $4.75
    #14774 Winterization Hatch Screens - E 8 A or B - Proto2000 models - pkg of 2 $2.25

    Go To Your Shopping Basket

    SP Rotary Snow windshield wipers


    Stainless steel SP rotary snow windshield wipers


    Qty Part# Description Price

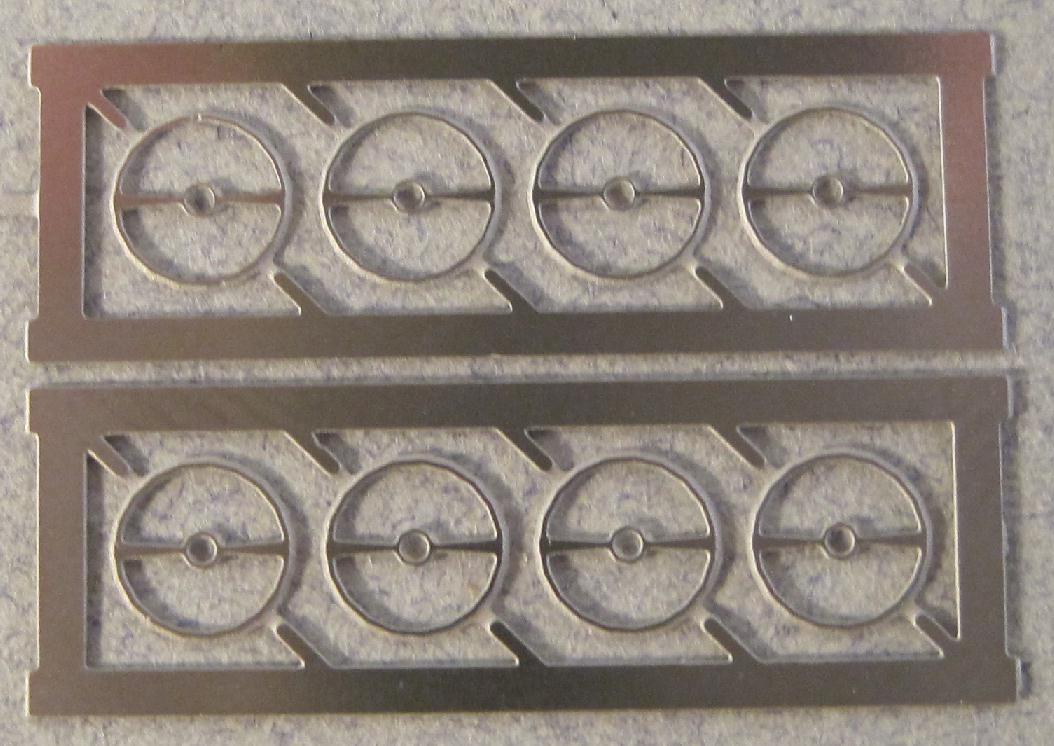

    #14639 SP rotary snow wipers - 8 SS $ 2.50

    Go To Your Shopping Basket

    EMD Step Sets


    Brass steps to replace all the steps on your model. Designed to fit the model. Sets include all corner steps and all cab steps, as applicable.



    Qty Part# Description Price
    #14907 SD7 Corner Side Step Tread Set - Proto2000 Model $4.00
    #14909 SD9 Corner Side Step Tread Set - Proto2000 Model $4.00
    #14912 MP15DC End Step Tread Set w/ Cab Steps - Atlas Model $4.25
    #14915 GP15-1 Step Set - Athearn Genesis Model $4.00
    #14924 SD24/26 Step Set - Atlas Model $ 4.00

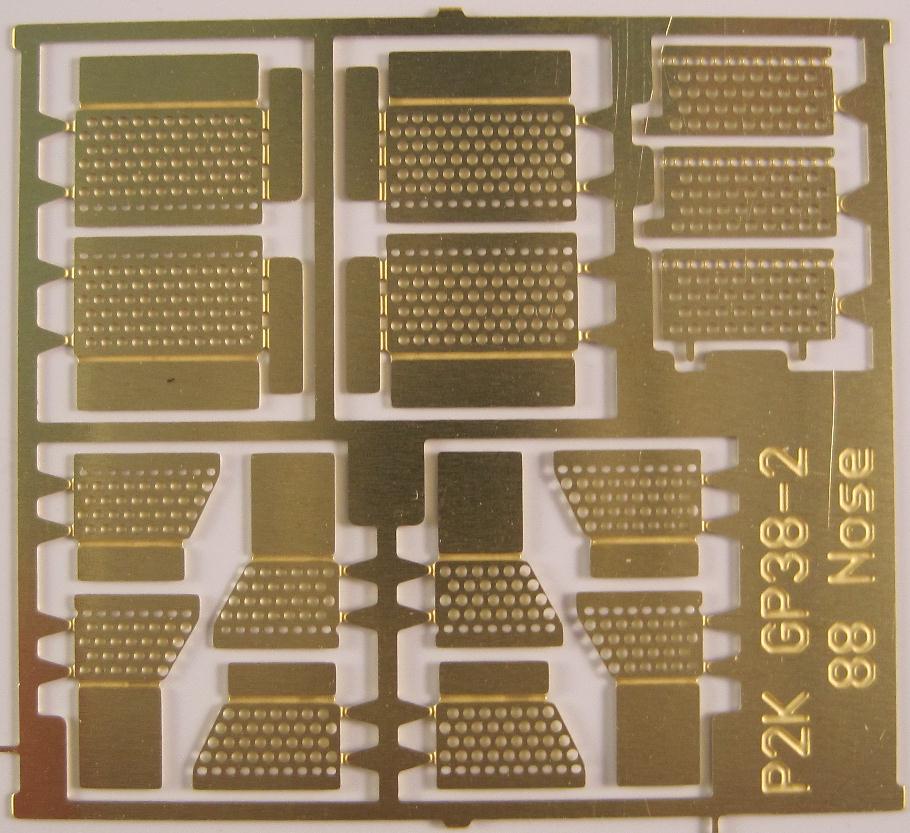

    #14938 GP38-2 Step Set - Proto2000 model w/88" nose $3.50

    Go To Your Shopping Basket

    We have brass EMD Blower Housing Step Guards like those found on GP50's, GP60's and the SD60's. The slots in these guards slant at a slight angle.



    Qty Part# Description Price
    #189 EMD Blower Housing Step Guards - brass (4 per pkg.) $1.00


    GP7s & 9s can be found with a variety of body louver configurations. Models being produced use a 'common phase' configuration for the body louvers. Now kitbashers and detailers can add additional body louvers to their models without having to chop up an additional shell.



    Qty Part# Description Price
    #461 GP7 / 9 Body Louver set - Stainless - Pkg of 12 $2.25


    Switchers need louvers too. We have developed a set of switcher louvers that should allow you to update your model to represent the prototype you resire. Each package contains three different size configurations and there are fifteen of each size.



    Qty Part# Description Price
    #14612 EMD Switcher Louvers - Stainless - Pkg of 45 $3.75


    Some railroads had metal nose or side heralds applied to their E and F units. We have a few nose heralds to but on your nose.......



    Qty Part# Description Price
    #500 Santa Fe Indian Herald Set - Stainless Steel - 2 per pkg. $2.50
    #502 Southern Pacific Nose Heralds - Stainless Steel - 2 per pkg. $3.00
    #504 Rock Island Nose Heralds - Stainless Steel - 2 per pkg. $3.00
    #506 Western Pacific Nose Heralds - Stainless Steel - 2 per pkg. $3.00
    #508 Baltimore & Ohio Nose Heralds - Brass - 2 per pkg. $3.00
    #510 Atlantic Coast Line Nose Heralds - Stainless Steel - 2 per pkg. $3.00

    Go To Your Shopping Basket

    EMD GP7 and GP9 Details


    These stainless steel intake screens are design to replace the plastic screens found on the Proto2000 models.



    Qty Part# Description Instructions Price
    #14860 GP7 /9 Intake grille Screens - Proto2000 Model - Stainless Steel read $ 4.00

    Go To Your Shopping Basket

    As long as you are replacing the intake screens on your GP7 or GP9, you might as well install a set of intake shutters behind those screens. Instead of seeing an empty, open area, these brass shutters fill that opening and can be position in an open or closed or about any position.



    Qty Part# Description Instructions Price
    #14861 GP7 /9 Intake shutter set - Proto2000 Model - Brass read $ sold out

    Go To Your Shopping Basket

    These stainless steel intake grilles are design to replace the plastic grilles found on the Proto2000 GP18 and GP20 models.



    Qty Part# Description Instructions Price
    #14862 GP18 / 20 Intake grille set - Proto2000 Model - Stainless Steel read $ 4.00

    Go To Your Shopping Basket

    EMD SD7 and SD9 Details


    These stainless steel intake screens are design to replace the plastic screens found on the Proto2000 models. Another detail for your SD7/9 are replacement end ladders.
    If you are looking for SD7 and/or SD9 End Corner Tread Steps, those can be found in the EMD Steps section of this page.



    Qty Part# Description Instructions Price
    #14870 SD7 /9 Intake grille Screens - Proto2000 Model - Stainless Steel read $ 4.00
    #14873 SD7 /9 End Ladder set (4) - Proto2000 Model - Phosphorus bronze read $ 4.25
    #14907 SD7 Corner Side Step Tread Set - Proto2000 Model ---- $4.00
    #14909 SD9 Corner Side Step Tread Set - Proto2000 Model ---- $4.00

    Go To Your Shopping Basket

    EMD SD24/26 Details


    These stainless steel intake screens are design to replace the plastic screens found on the Atlas SD24 and the SD26 model. A set of end ladders are also available for your detailing project along with corner pilot step treads.



    Qty Part# Description Instructions Price
    #14890 SD24/26 Intake grille Screens - Atlas Model - Stainless Steel read $ 4.00
    #14893 SD24/26 End Ladder set (4) - Atlas model - Phosphorus bronze ---- $ 3.50
    #14924 SD24/26 Step Set - Atlas Model ---- $ 4.00

    Go To Your Shopping Basket

    If you happen to model the Southern Railway between the mid 70's to the late 80's and have any SD24s on your roster, you might be interested in this rebuild kit. It kit contains several detail parts like those seen on their SD24s after a rebuild.



    Qty Part# Description Instructions Price
    #14898 Southern SD24 Rebuild details parts kit - Atlas Model read $ 4.25

    Go To Your Shopping Basket

    And for those of you Southern modelers just looking for the sunshades, we do have them available separately (well actually two sets per package).



    Qty Part# Description Price
    #14628 Southern Style Diesel Cab SunShades - 2 sets $ 3.50

    Go To Your Shopping Basket

    CNW SD18 conversion kits


    There are two kits available to convert the Atlas SD24 model to a CNW SD18 model. One of the kits cover the ex-southern High short hood units #6622-6642. The second kit covers the ex-UP low nose units #6643 - #6646. Each kit contains several unique parts specifically for those units. More information on these kits and the details can be found in the link of the kits part numbers. These kits DO NOT include our Intake screens #14890 or our Step set #14924, which we are sure you we want to replace on your model.



    Qty Part# Description Instructions Price
    #14880 CNW SD18 conversion kit - ex-Sou High nose unit - Atlas Model read $ 18.00
    #14881 CNW SD18 conversion kit - ex-UP Low nose unit - Atlas Model read $ 17.00

    Go To Your Shopping Basket

    EMD E8 and E9 Details


    These stainless steel intake grilles are design to be used on Proto2000 models. Each kit contains one set of intake grilles and two winterzation hatch screens. The hatch screens are also available separately for those that just want to replace the screens. They are listed in the winterizarion hatch screens section.



    Qty Part# Description Price
    #14830 E8A Horizontal Intake grille Set - Proto2000 Model - Stainless Steel $ 8.50
    #14831 E8B Horizontal Intake grille Set - Proto2000 Model - Stainless Steel $ 9.00
    #14832 E8A FARR Intake grille Set - Proto2000 Model - Stainless Steel $ 8.50
    #14833 E8B FARR Intake grille Set - Proto2000 Model - Stainless Steel $ 9.00

    Go To Your Shopping Basket

    EMD E8 and E9 modified grilles


    At some point, EMD started using a 'modified' FARR style intake grille on E units. These grilles had larger opening over the intake areas. We have a VERY VERY SMALL run of these grilles for those who need them for their Proto2000 models



    Qty Part# Description Price
    #14834 E8A Modified FARR Intake grille Set - Proto2000 Model - Stainless Steel $ 7.75
    #14835 E8B Modified FARR Intake grille Set - Proto2000 Model - Stainless Steel $ 9.00

    Go To Your Shopping Basket

    EMD E8 and E9 BLI Grilles


    The following stainless steel intake grilles are design to be used on BLI E unit Models. These will be a very limited run of grilles. They will only be available directly through this web site. There are three variations of these grilles. The horizontal, FARR vertical and a 'Modified' FARR with wider openings in the intake areas. A note of warning. These A unit grilles will NOT fit the first run of BLI models



    Qty Part# Description Price
    #14840 E8A Horizontal Intake grille Set - BLI Model - Stainless Steel $7.75
    #14841 E8B Horizontal Intake grille Set - BLI Model - Stainless Steel $ 9.00
    #14842 E8A FARR Intake grille Set - BLI Model - Stainless Steel $ 7.75
    #14843 E8B FARR Intake grille Set - BLI Model - Stainless Steel $ 9.00
    #14844 E8A Modified FARR Intake grille Set - BLI Model - Stainless Steel $7.75
    #14845 E8B Modified FARR Intake grille Set - BLI Model - Stainless Steel $ 9.00

    Go To Your Shopping Basket

    EMD F7 Grilles information


    Not sure where else to put this but, We have been getting requests from modelers looking for our HO scale F7, F9 and FP7 grilles. Well, we have no plans to do any F unit grilles in HO. One grille does not fil all. Too many models being made to try cover them all or figure out which ones to cover. And there are several other grilles already out there. We feel it best we use that time to develop a few other projects that are not already available. Thank you for your understanding!



    email



    www.planomodelproducts.com
    Web hosting for Plano Model Products@Cactus Shade Designs
